Himax Brushless Outrunner Motor HC6330-210 F3A Advanced

Himax Brushless motors are manufactured to high standards
for the discerning modeler. Designed for lightweight, high efficiency,
high torque, and durability Himax Outrunner motors are sure to make
today's radio controlled models perform. Himax 6330-210 F3A Motor (210KV)

New 210KV design F3A Outrunner by Himax

* High Power - 2500 watt,
* High Efficiency - at least 5% more efficient than similar motors,
* Light Weight - 610g
* Replacement for YS170, Plattenberg Evo 30-10 class motors,
* Firewall to drive washer distance and mountain pattern are identical to those of Pettenberg Evo.

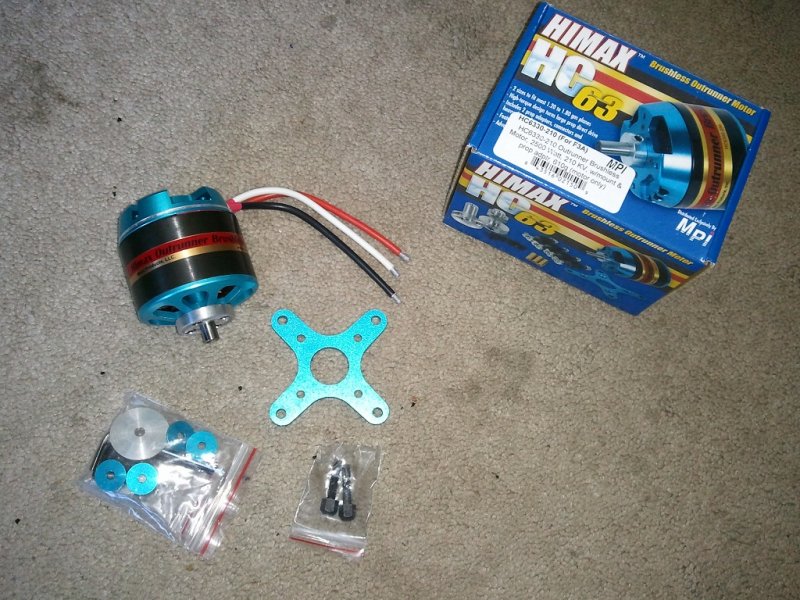

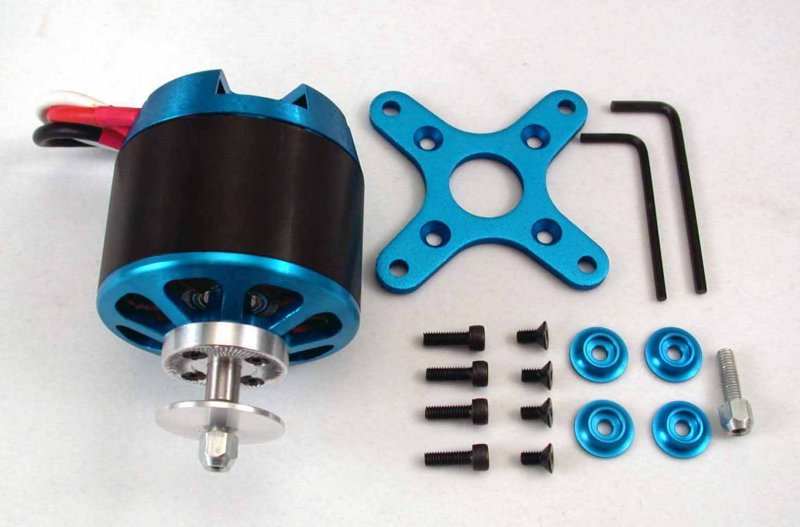

Includes all accessories as the 6330-200 motor ( X-mount, bolts, wrenches,washers etc)

Mounting Pattern: #1 M4x3 at 40mm dia, compatible with Plettenberg Evo 30 #2 M4x4 at 44.5mm dia, compatible with Himax HC6332 & Axi5330 Firewall to drive washer distance: 67mm, same as Plettenberg Evo 30

Electrical Specifications: Kv = 210 rpm per volt Rm = tbd Io = tbd Efficient Operating Current = 20-75A Continuous 80A Max 15 seconds Recommended Accessories: Prop: APC 20x15E, 20.5x14E, 21x14E or equivalent ESC: CC Phoenix HV85, CC ICE HV80, Jeti 77 or equivalent Battery: 10S lithium polymer battery capable of 80-100 Amps
