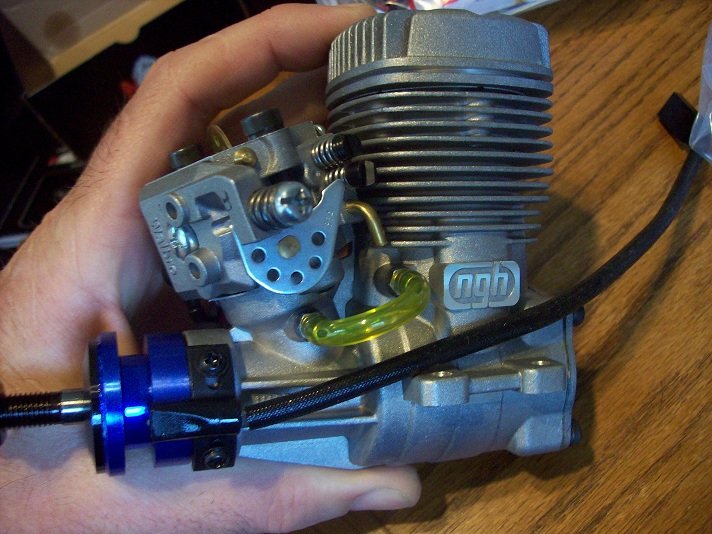

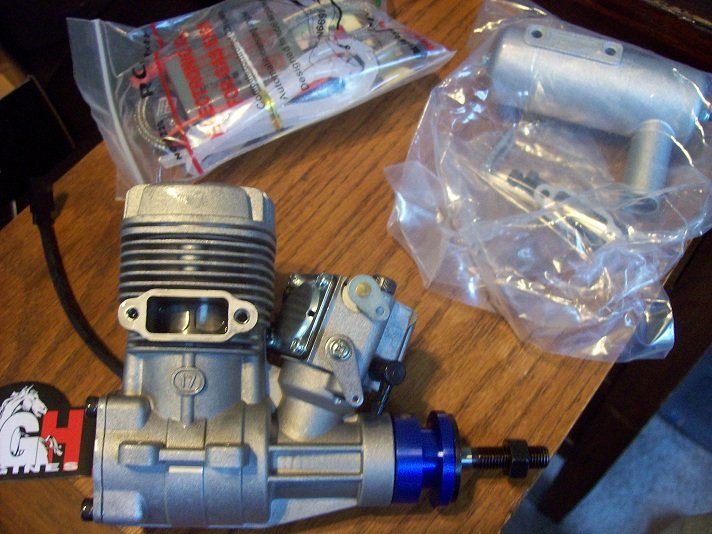

NGH GT17cc gas engine

The NGH GT17B is an ideal replacement for 0.60-0.90 nitro engines! Stop spending big $$$ for glow fuel, switch to GAS!

Specifications:
Engine Type - Gasoline Two-stroke, Air Cooled, Rotary Valve
Cylinder Type - Precision Steel Sleeve
Cylinders - Single
Crank Type - Forged Dual Ball Bearing Support
Mounting Type - Beam or Rail Mount

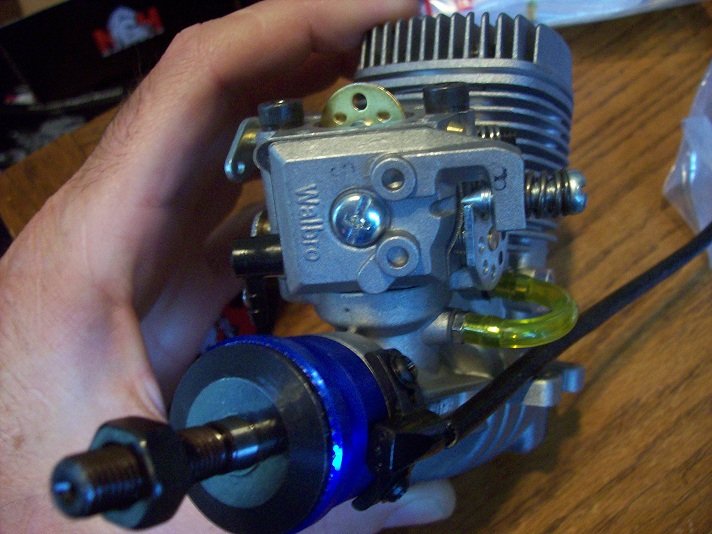

Carburetor Type - Walbro WT Series
Carburetor Mounting - Front
Crankshaft Threads - 5/16" X 24 TPI

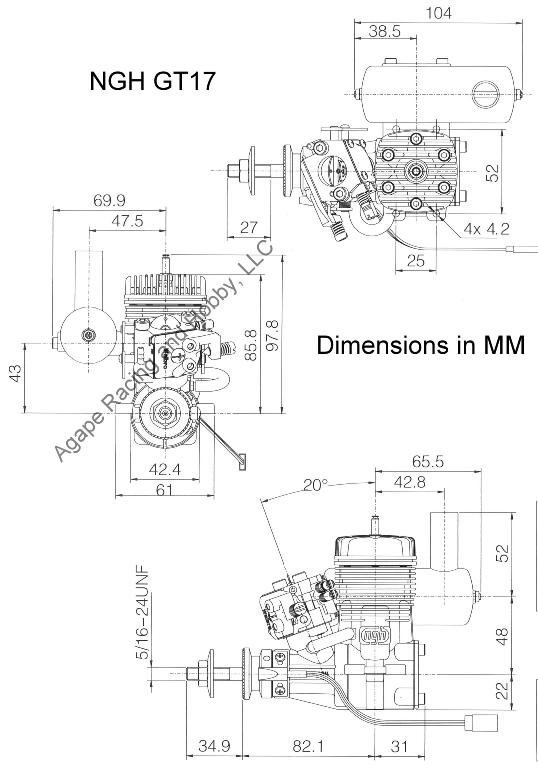

Mounting Dimensions - Owners Manual or Website
Ignition: RCEXL 1/4-32 90 Degree Single Cylinder
Spark Plug Type - 1/4" X 32 TPI
Displacement -1.02 cu in.(16.91cc)
Bore - 1.14 in. (29mm)
Stroke - 1.01 in (25.6mm)

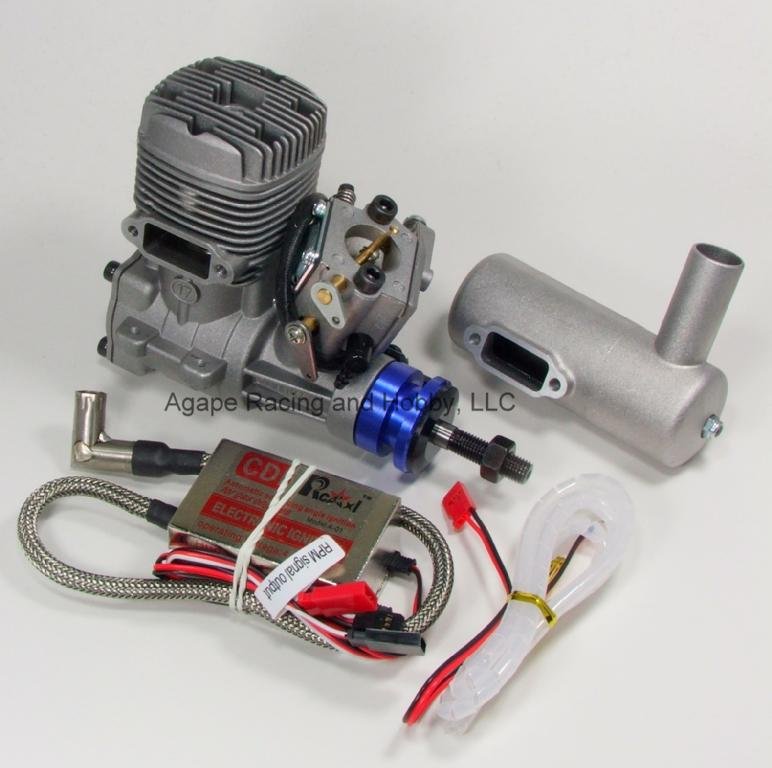

Engine+ Muffler+ Ignition (Total Weight) = 1 lb. 14 oz. (850g)
Prop Range - 14*8,15*8,16*8
RPM Range - 2100-9000
Fuel - Unleaded Gasoline/Full Synthetic 2 stroke oil; Break-in with 20:1, General 25:1 Premix For Air Cooled Engines
Compression ratio - 10

Performance :
Prop RPM
JXF 14*89000
JXF 15*8 8000
JXF 16*8 7000
