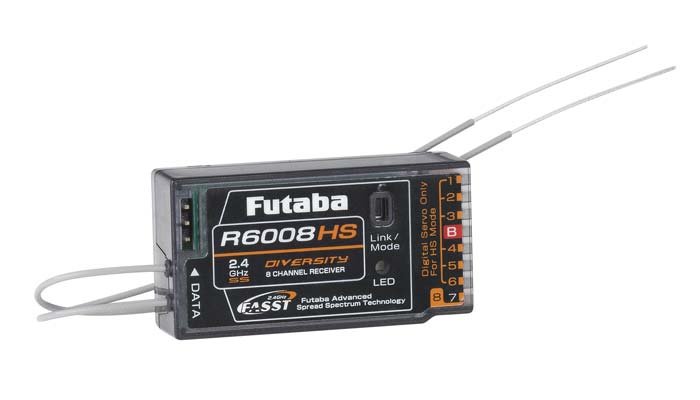

Futaba R6008HS 8-Channel 2.4GHz FASST Receiver

This is the Futaba R6008HS 2.4GHz FASST 8-Channel Receiver.
This receiver is switchable between regular and HS modes,
per the Link/Mode button.

**NOT compatible with the Futaba 6EX and 7C 2.4GHz System.**

FEATURES: 2048 resolution plus FASST benefits including Dual Antenna
Diversity and significantly reduced latency for lightning quick
response
High speed operation allows digital servos to update more rapidly
than analog servos (both are compatible with this receiver)
HS (High Speed) mode improves frame rate on channels 1-6 to only
7 milliseconds-compared to 14 milliseconds at normal mode
One year limited warranty

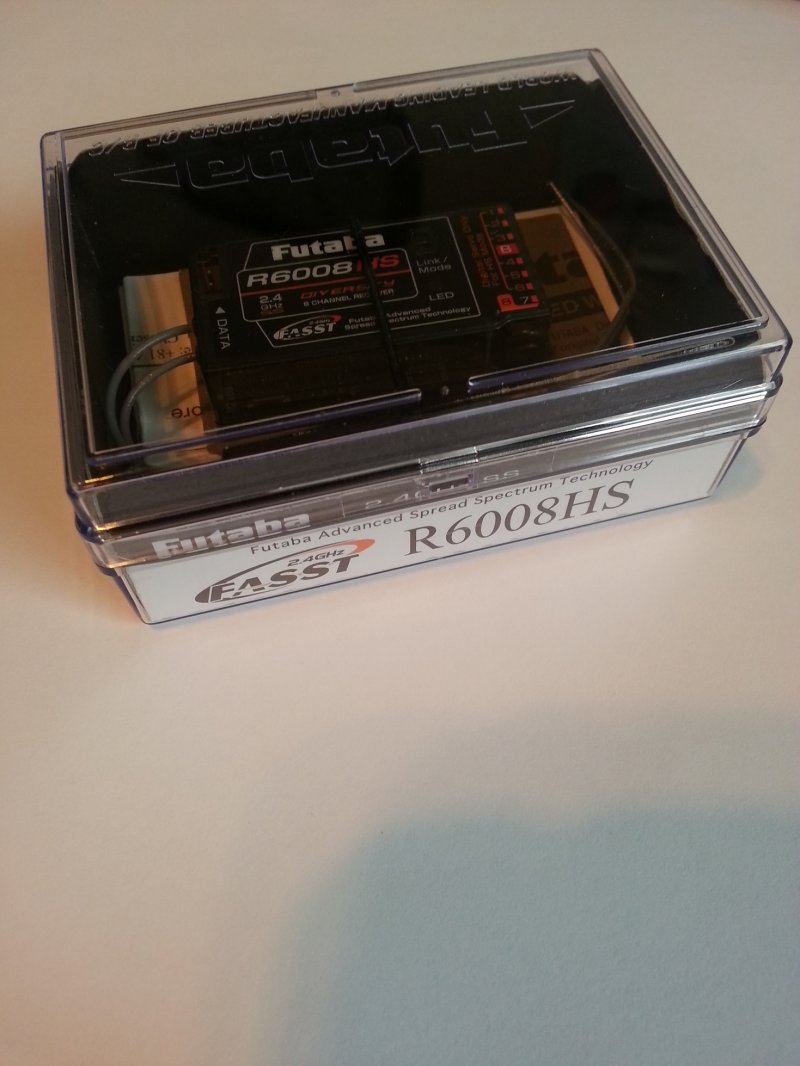

INCLUDES: Futaba R6008HS 2.4GHz FASST 8-Channel Receiver with instruction sheet

REQUIRES: Installing in model and connecting servos

SPECS: Dimensions: 1.8 x 0.9 x 0.5" (45 x 22 x 13mm)
Weight: 0.48oz (13.5g)
Power Requirement: 4.8 or 6.0V battery or regulated output from ESC

COMMENTS: In HS mode, digital servos (including those in the BLS series) must
be used on channels 1-6. Those channels will also operate gyros and
brushless ESCs. Channels 7 and 8 continue at normal mode and accept
any servos
